RAM-4X2A-50
Both the RAM-4X and the RAM-4X2A use the same trusted technology as the popular RAM-4 unit to clean larger I.D. boiler tubes.
THE TURBINE ACTION TUBE CLEANERS

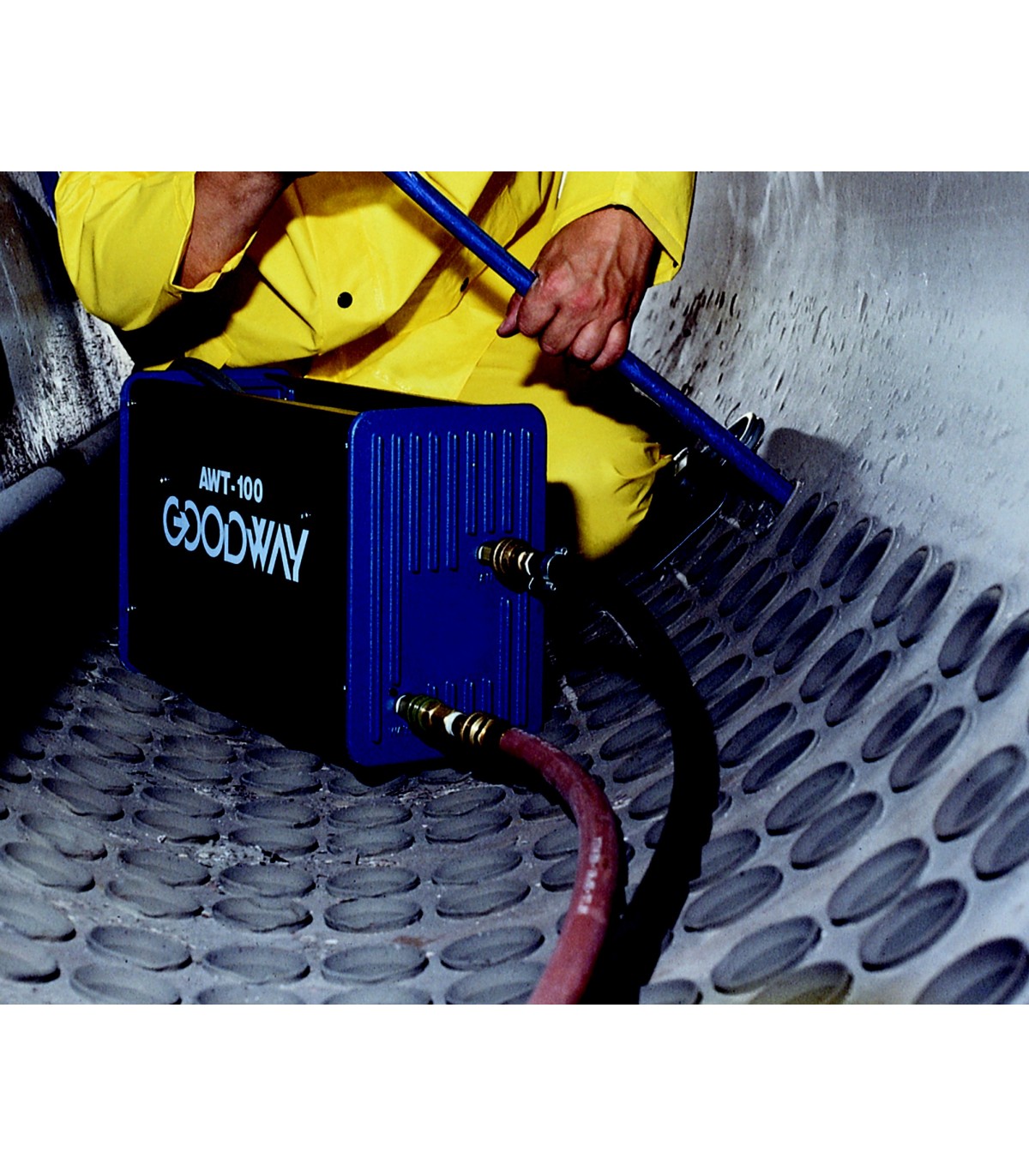

It doesn’t take long for heavy buildup of scale and soot to form in firetube boilers resulting in wasteful fuel consumption. Thorough and frequent cleaning is necessary to maintain performance and increase efficiency. Both the RAM-4X and the RAM-4X2A use the same trusted technology as the popular RAM-4 unit to clean larger I.D. boiler tubes. Powerful turbine action does the dirty work. With a variety of brushes and cleaning tools to choose from, these units make any boiler cleaning operation an easy, one-person job that pays dividends in increased efficiency.
Video: RAM-4X-KIT
RAM-4X-A Portable Chiller Tube Cleaner includes:
- RAM-4XA-50 Chiller Tube Cleaner
- Dolly with wheels
- Quick Connect shaft manifold
- Single direction foot switch.
Note: Shaft, brushes and other accessories sold separately
Data sheet
- Application
- Intense, Industrial Use
- Tube Size Range
- Min 1" (25.4 mm) I.D.
- Power (HP)
- 1.5
- Flexible Shaft Speed (rpm)
- 1725 (can be decreased to 862.5 rpm by changing pulley ratio request 2:1 ratio drive for greater torque)
- Shaft Feed Method
- Manual
- Water Requirements
- 7.5 L/min at min 2.1 BAR
- Dimensions (mm)
- 940 mm (H) x 510 mm (W) x 430 mm (D)
- Weight (kg)
- 30
- Air Requirements
- Minimum: 4.1 BAR at 2.38 m3/min, Maximum:7 BAR at 3.64 m3/min
