BFP-3510-230-1

The ultimate surface condenser cleaner. Designed for large volume condenser cleaning jobs, this portable pumping system provides the complete platform needed to clean condenser tubes fast

Reference:
BFP-3510-230-1
Brand:
Related products
No items
Description

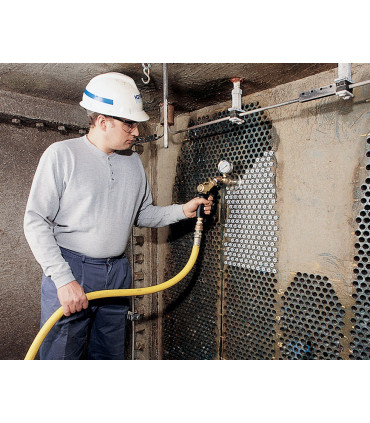

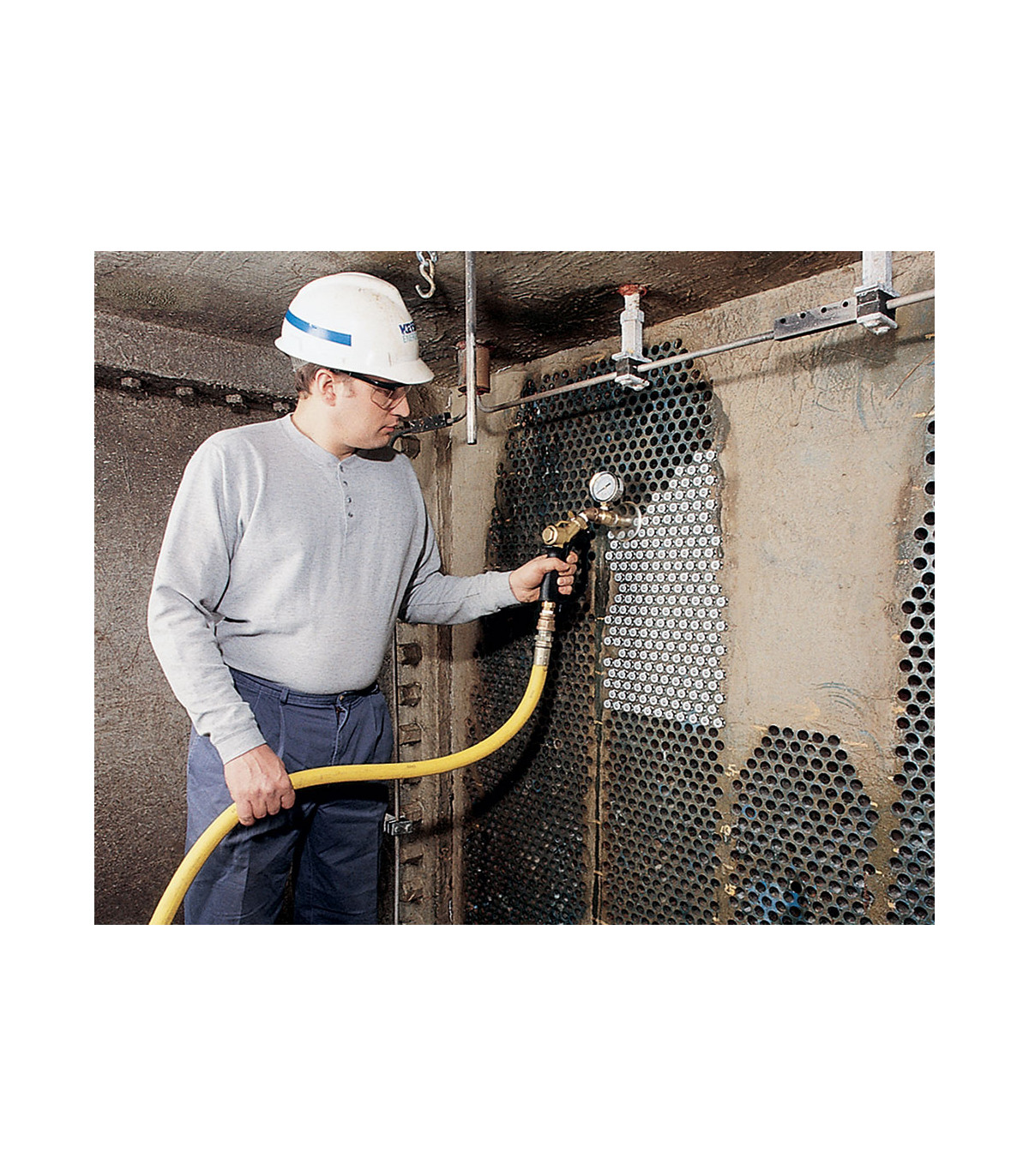

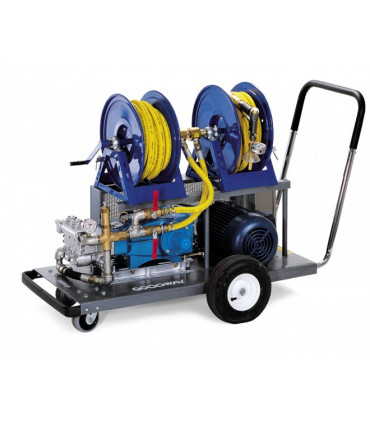

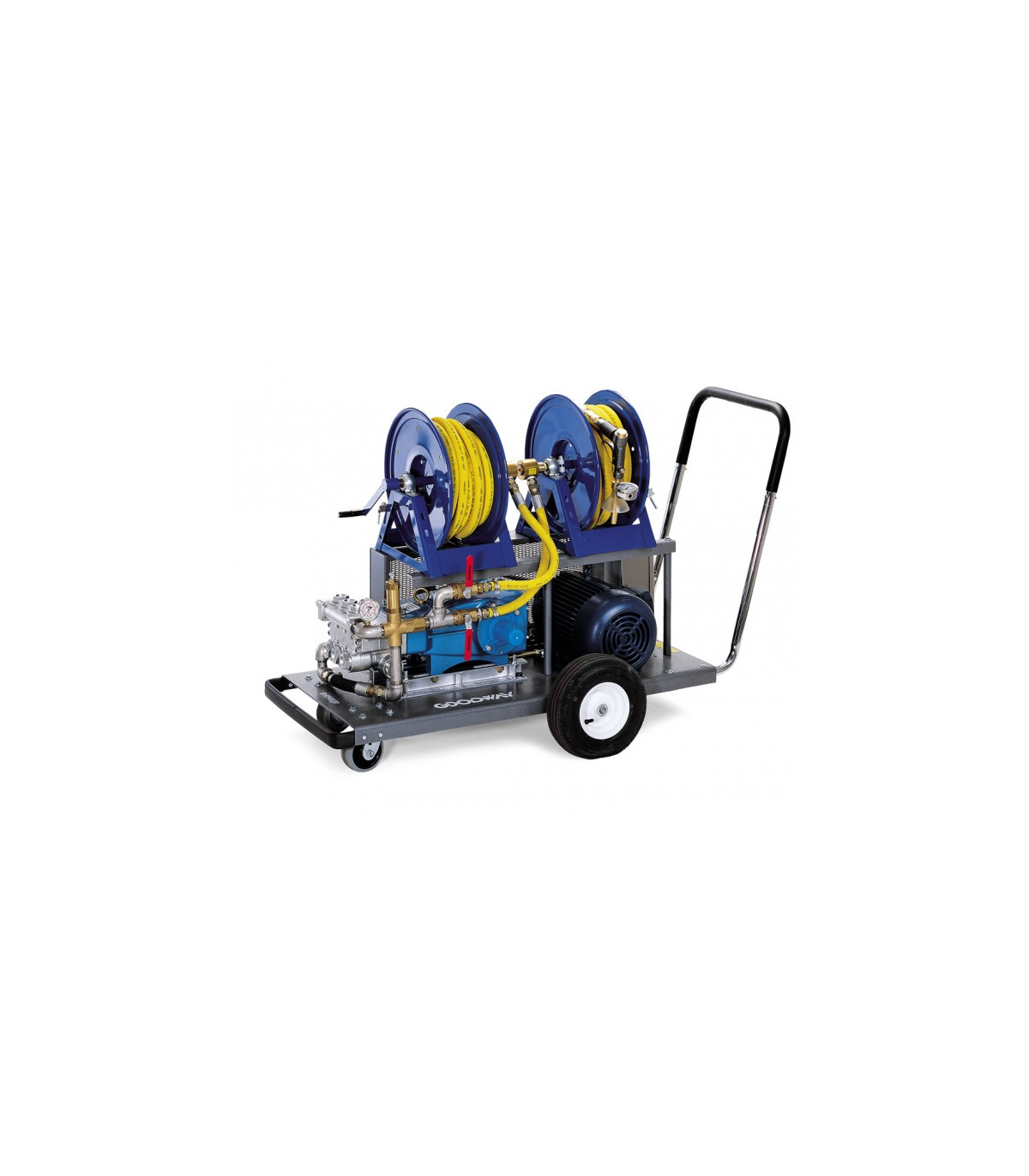

The BFP-3510 Big Shot is the ultimate surface condenser tube cleaning system. The unit comes fully equipped with a 10 HP (7.5 kW) motor, a triplex plunger two gun, alternate shot pump, Goodyear T water inlet, and outlet hoses, all on a heavy-duty, custom fabricated cart. It seriously makes surface condenser cleaning faster and easier. Just add the correct gun. When the trigger is squeezed, pressurized water propels a Super Scrubber, Coil Tube Brush, or other projectiles through a tube 5/8"-1" (15.9-31.8mm) O.D. When used in conjunction with Goodway's Super Scrubbers, the BFP-3510 is capable of removing even the toughest scale, making surface condenser tube cleaning faster than ever before. It is the power plant professional's system of choice for hard deposits! The operator simply inserts a projectile into a tube and shoots. As the projectile is propelled forward, it forces out deposits, leaving the tube thoroughly cleaned. And how about another benefit? This system creates much less wastewater when compared to high-pressure lancing systems.

What's Included

BFP-3510 Pumping System includes:

  • BFP-3510 Big Shot Tube Cleaning System
  • 1-1/2" x 50' (38mm x 15.2m) inlet hose
  • 3/4" x 50' (19mm x 15.2m) outlet hose with reel and cart
Product Details
BFP-3510-230-1

Data sheet

Application
Intense, Industrial Use
Power (HP)
10HP (7.5kW)
Input Power (V / Hz)
Standard: 26 amps, 230 V, 50/60 Hz AC, 3 phase (Optional: 13 amps, 460 V, 50/60 Hz; 12 amps, 380 V, 50/60 Hz)
Water Requirements
Minimum 20 PSI at 35 GPM (1.4 BAR at 132 LPM) Output Water Pressure: 275-400 PSI at 35 GPM (19-28 BAR at 132 LPM)
Dimensions (mm)
8" (460mm) high x 32" (810mm) wide x 52" (1,320mm) deep
Weight (kg)
600 lbs (272 kg), net dry
CE Certification
Yes
Hoses
1-1/2" x 50' (38mm x 15.2m) water inlet and 3/4" x 50' (19mm x 15.2m) water outlet
