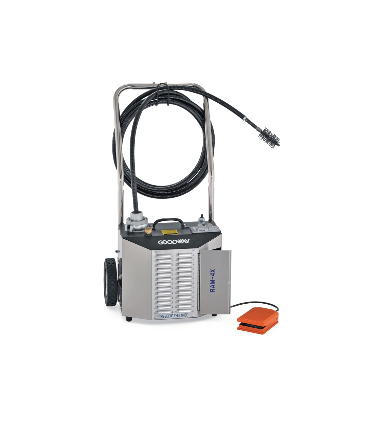

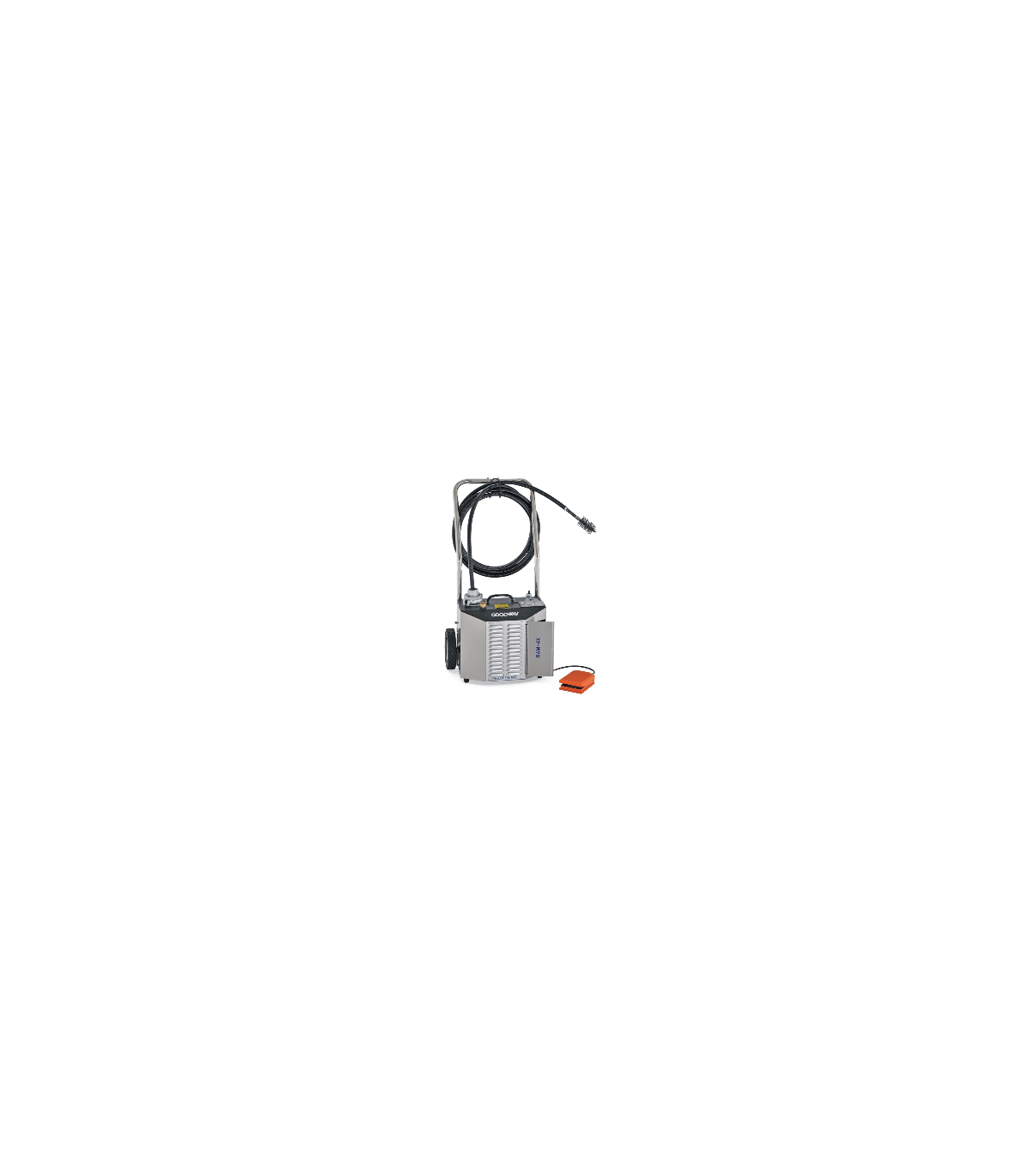

RAM-4X
The impressive RAM-4X Tube Cleaner is equipped with a full 1 HP (0.75 kW) drive motor to remove hard deposits and scale from tubes/pipes 1" (25.4mm) I.D. and up.
The Turbine Action TubeCleaner!
It doesn’t take long for heavy buildup of scale and soot to form in firetube boilers resulting in wasteful fuel consumption. Thorough and frequent cleaning is necessary to maintain performance and increase efficiency. RAM-4X use the same trusted technology as the popular RAM-4 unit to clean larger I.D. tubes. Powerful turbine action does the dirty work. With a variety of brushes and cleaning tools to choose from, these units make any boiler and large diameter tubes cleaning operation an easy, one-person job that pays dividends in increased efficiency.
RAM-4X-A Portable Chiller Tube Cleaner includes:
- RAM-4XA-50 Chiller Tube Cleaner
- Dolly with wheels
- Quick Connect shaft manifold
- Single direction foot switch.
Note: Shaft, brushes and other accessories sold separately
Data sheet
- Application
- Intense, Industrial Use
- Tube Size Range
- Min 1" (25.4 mm) I.D.
- Power (HP)
- 1.0
- Input Power (V / Hz)
- 220 V, 50 Hz, 6.5 amps
- Flexible Shaft Speed (rpm)
- 1725 (can be decreased to 862.5 rpm by changing pulley ratio request 2:1 ratio drive for greater torque)
- Shaft Feed Method
- Manual
- Shaft Lenght (m)
- Max 22,9
- Water Requirements
- 7.5 L/min at min 2.1 BAR
- Dimensions (mm)
- 940 mm (H) x 510 mm (W) x 430 mm (D)
