RAM-5-ID
With patented technology and over 15 years of proven performance, it's no wonder why the RAM-5-ID is the machine of choice among contractors and facility managers with large tube bundles.
Revolutionary Speed for Large Tubes Bundles

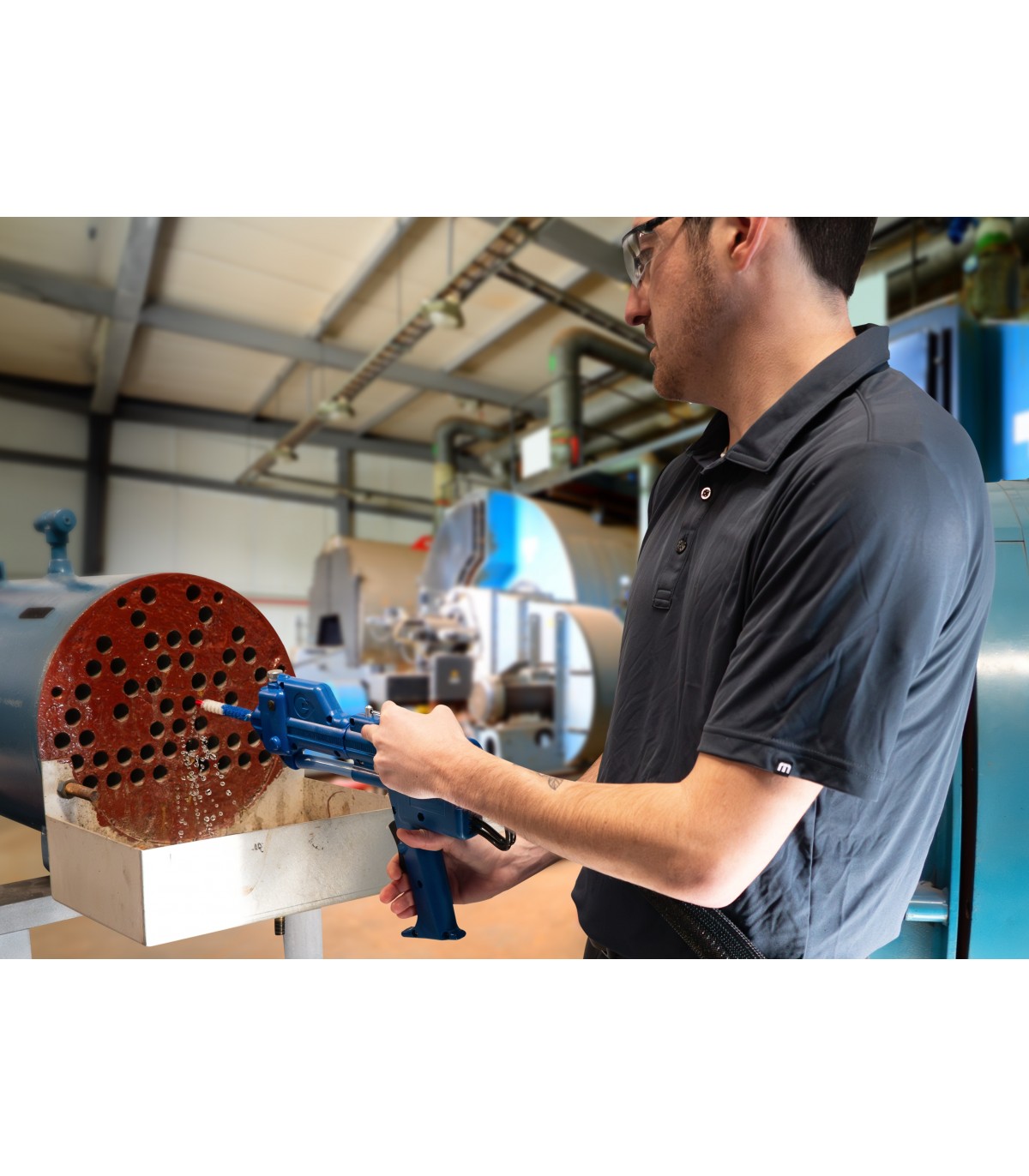

With patented technology and over 15 years of proven performance, it's no wonder why the RAM-5-ID is the machine of choice among contractors and facility managers with large tube bundles. The revolutionary Speed Feed gun combined with Goodway Blue Nylon Brushes will clean tubes up to four times faster than any other rotary tube cleaner. Minimal training time is required.
As the tube cleaning tool loosens debris, the shaft casing provides a steady stream of water, flushing out debris and restoring system efficiency. While the Speed Feed gun lets you control the direction of shaft rotation as well as the flow of water, the variable speed function allows you to control both the brush rpm and the feed rate.
When order, please take note that standard, the pulleys for the flexible shafts are for GTC-703. If your application needs smaller O.D. shaft, please order with SFG-702 Speed-Feed Gears for GTC-702 Shaft.
Video: RAM-5DC

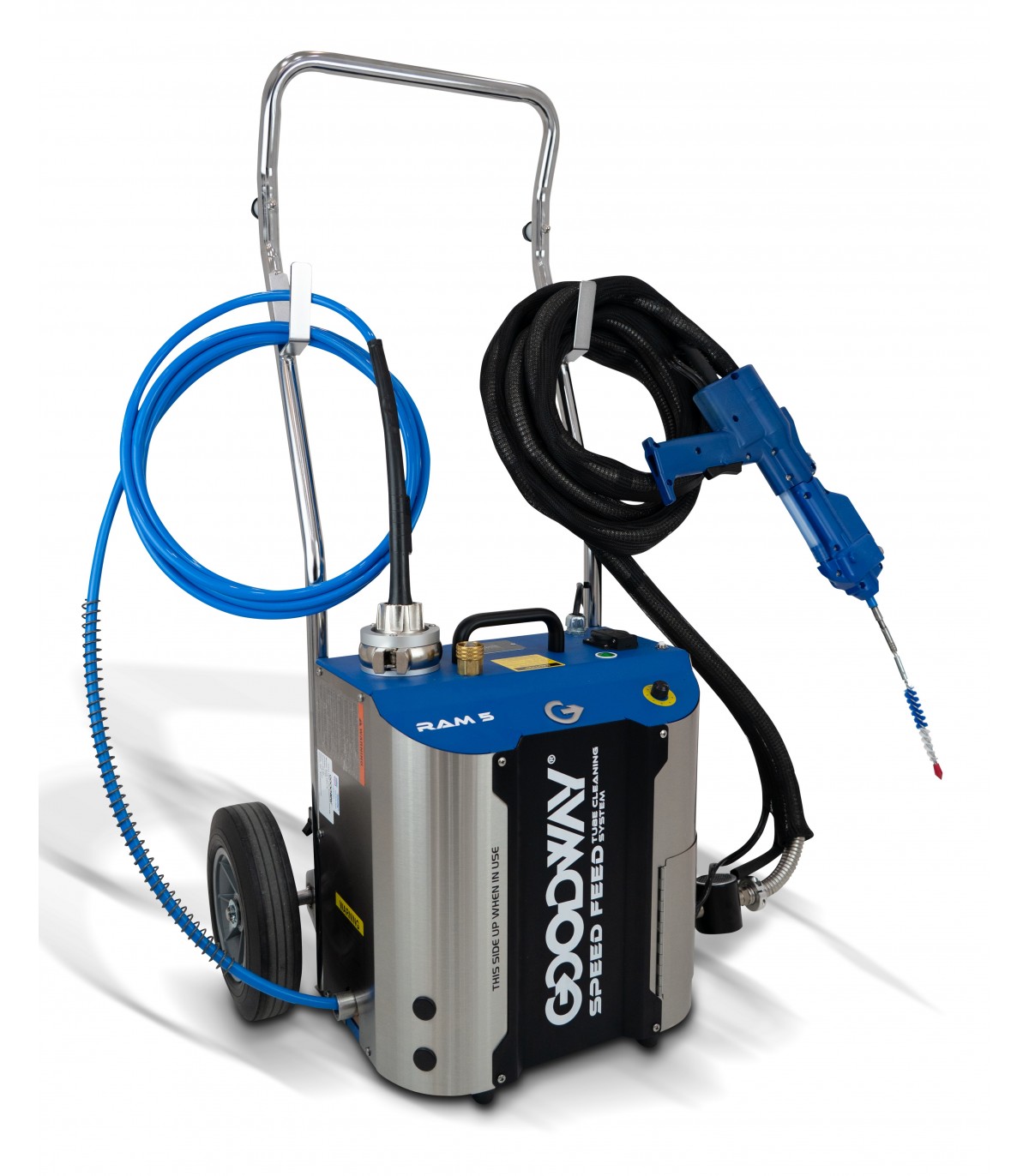

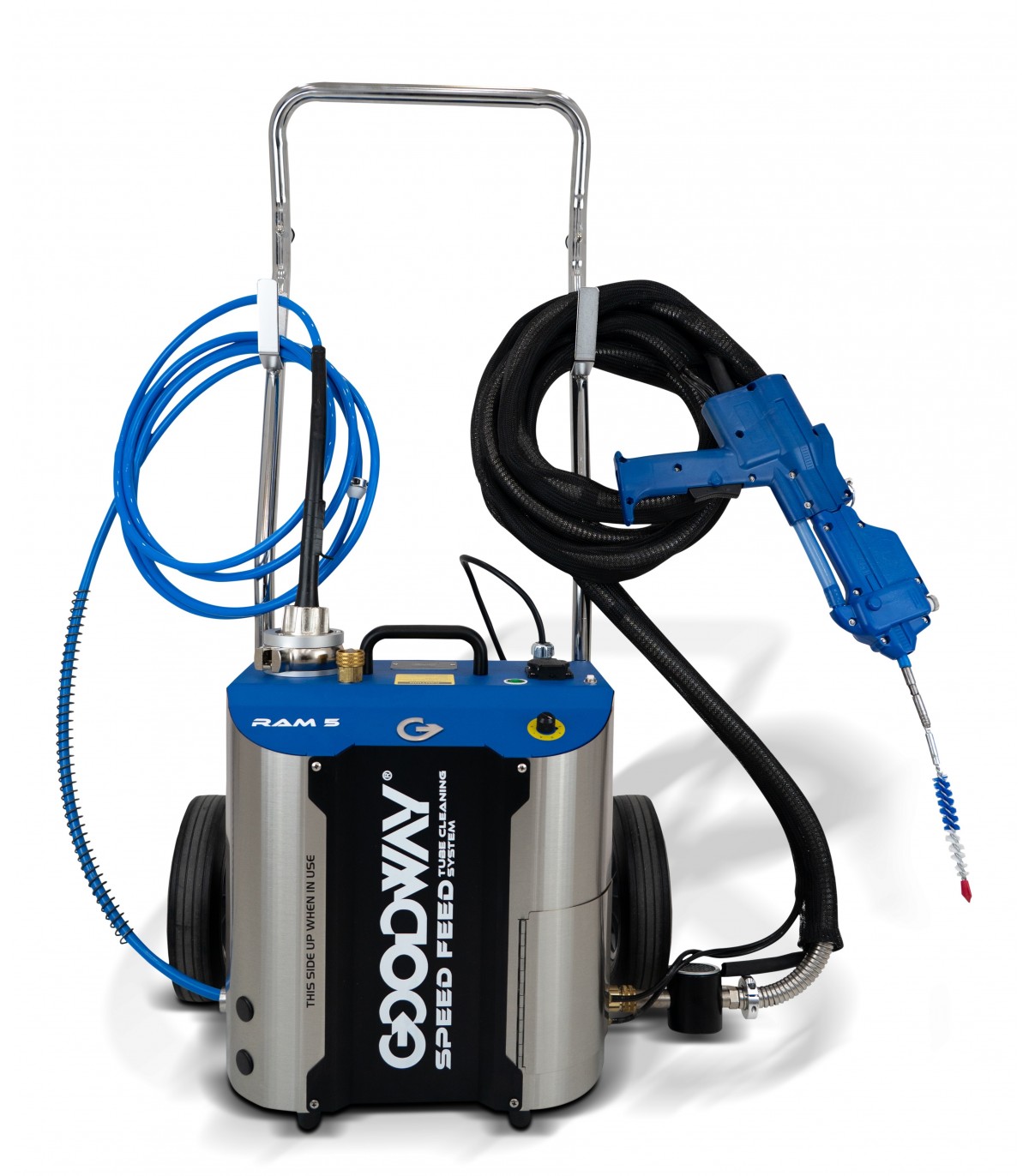

RAM-5DC Portable Chiller Tube Cleaner includes:
- RAM-5D-ID Chiller Tube Cleaner
- Speed Feed Gun
- 4.57 m guide hose
- One set of shaft feeder gears (GTC-703 Series)
- Dolly with wheels and tool carriage box
- Quick Connect shaft manifold
- Two direction foot switch.
Data sheet
- Application
- Intense, Industrial Use
- Power (HP)
- 0.75
- Input Power (V / Hz)
- 220V, 50 Hz, 6 amps
- Flexible Shaft Speed (rpm)
- Adjustable, 200 - 862.5
- Shaft Feed Method
- Automatic, or Manual
- Water Requirements
- 7,5 lpm @ 2 BAR
- Weight (kg)
- 30
- Speed-Feed Gun Race
- 0.2 - 0.9 m/sec
- Shaft-Feed Gun Force
- 220 N (pull/push)
