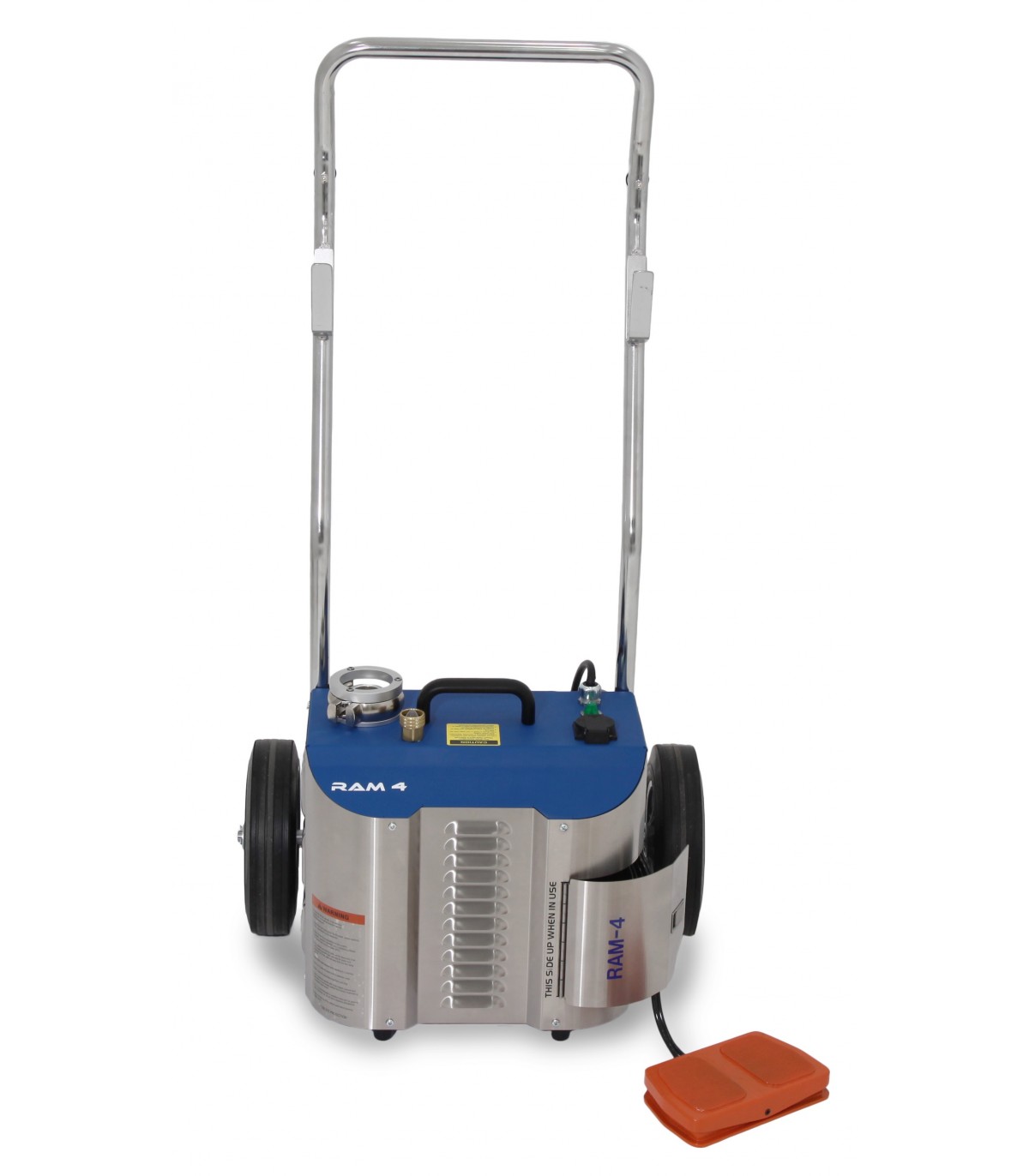

RAM-4A-ID
With the RAM-4-ID in your arsenal, you're backed by 32 years of proven tube-cleaning performance. Now, at it's fourth generation, the RAM-4-ID includes an array of interchangeable cleaning tools designed for a variety of situations, and applications. It was never so easily to clean tubes and restore system's performance.
THE ORIGINAL ROTARY TUBE CLEANER
With the RAM-4-ID in your arsenal, you're backed by 32 years of proven tube-cleaning performance. Now, at it's fourth generation, the RAM-4-IDincludes an array of interchangeable cleaning tools designed for a variety of situations, and applications. It was never so easily to clean tubes and restore system's performance.

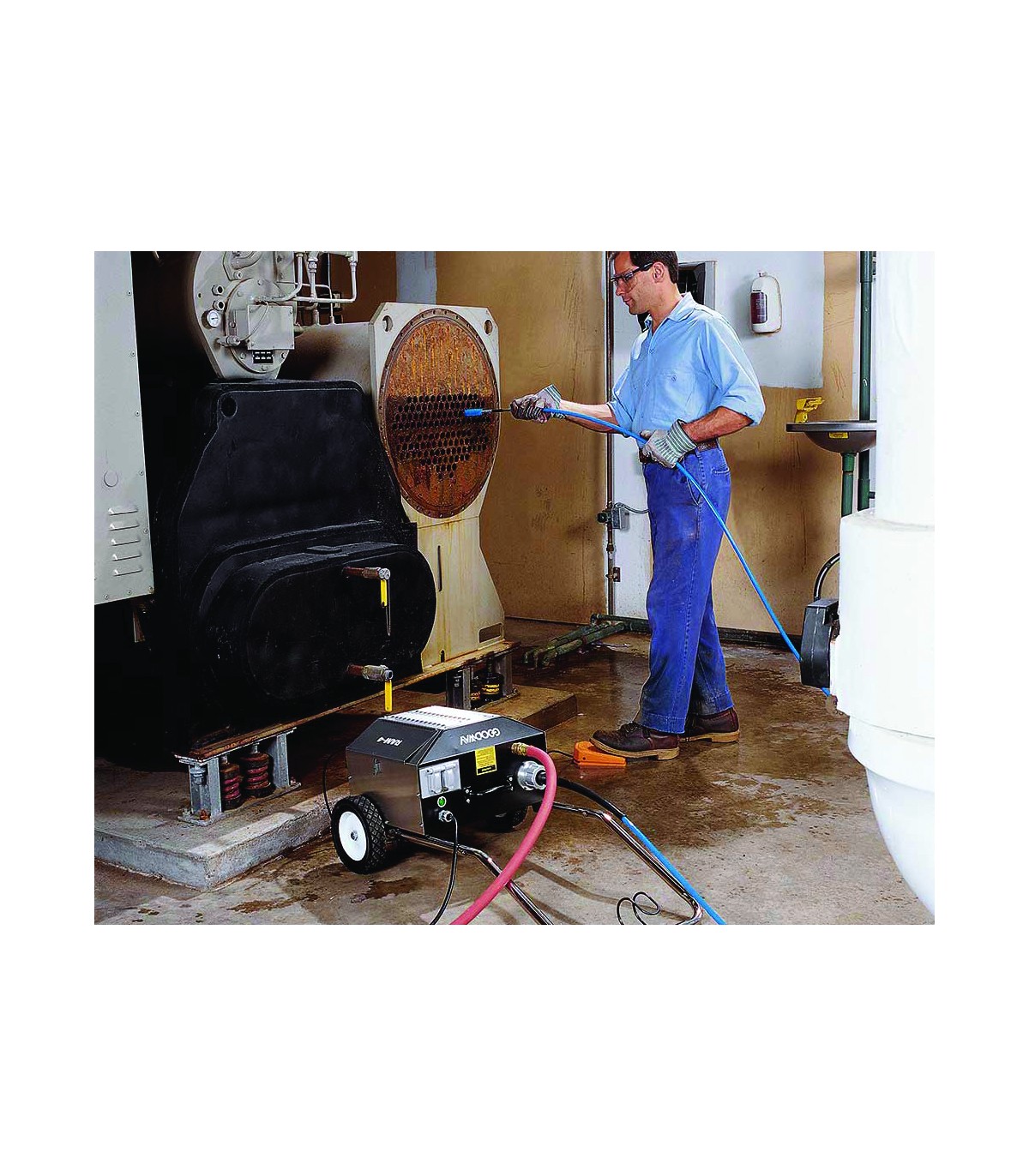

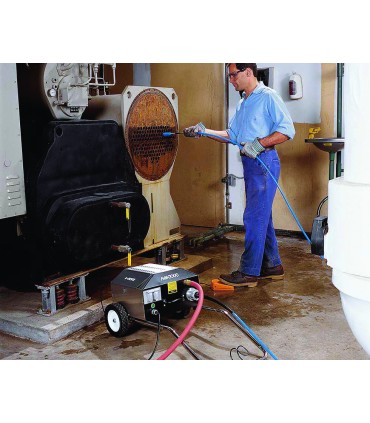

With our tools, you could safely and effectively scours debris away without damaging the walls. A casing around the shaft feeds water to the rotating tool, flushing out deposits as they are loosened.
The RAM-4-ID is one of the most effective weapons you can use to optimize your systems power requirements.
The RAM-4-ID is now delivered as standard with Reversible Shaft Rotation.
Video: RAM-4

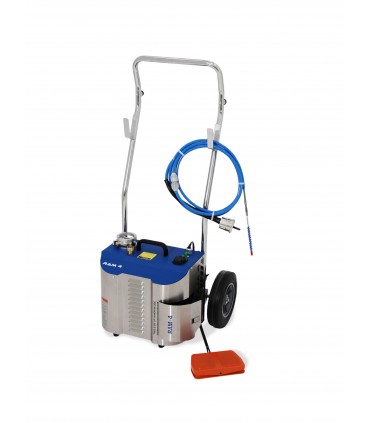

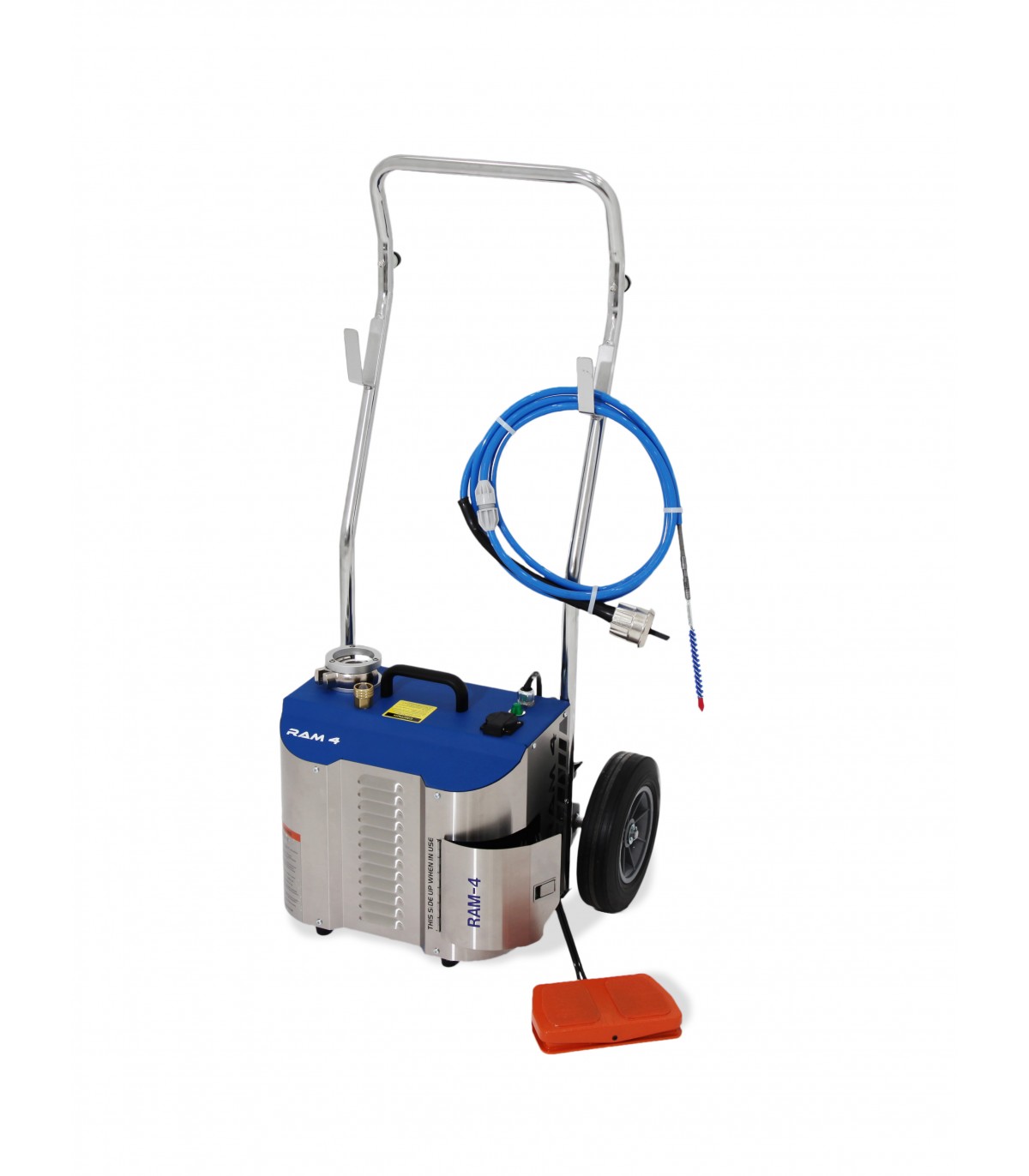

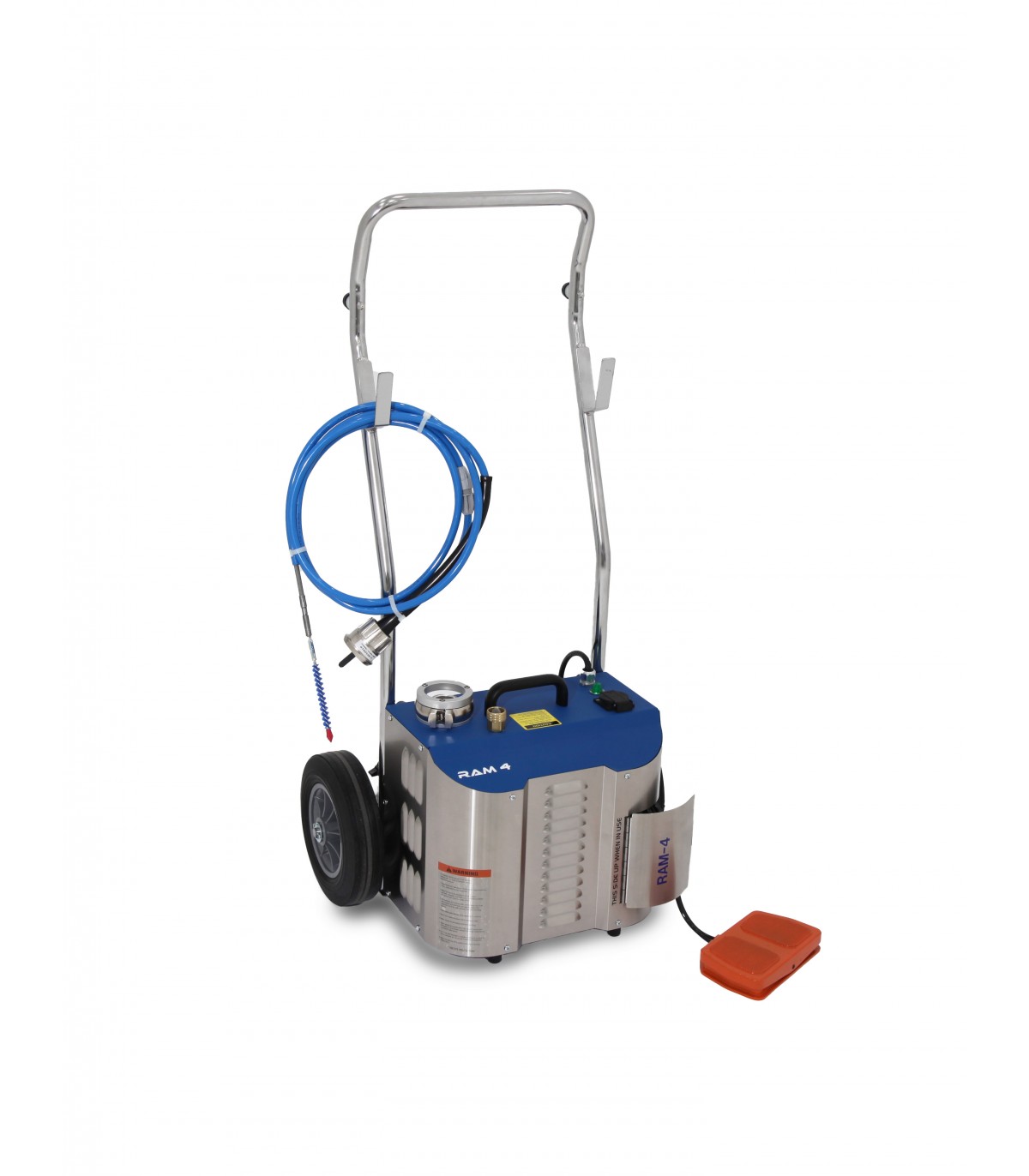

RAM-4-ID Portable Chiller Tube Cleaner includes:
- RAM-4A-ID Chiller Tube Cleaner
- Dolly with wheels
- Quick Connect shaft manifold
- Two direction foot switch.
Note: Shaft, brushes and other accessories sold separately
Data sheet
- Application
- Intense, Industrial Use
- Tube Size Range
- 6.4 - 25.4 mm (1/4" - 1")
- Power (HP)
- 0.5
- Input Power (V / Hz)
- 220V, 50 Hz, 4.5 Amps
- Flexible Shaft Speed (rpm)
- 862.5
- Shaft Feed Method
- Manual
- Shaft Lenght (m)
- max 22.9
- Water Requirements
- 7.5 L/min at min 2.1 BAR
- Dimensions (mm)
- 940 mm (H) x 510 mm (W) x 430 mm (D)
- Weight (kg)
- 20
