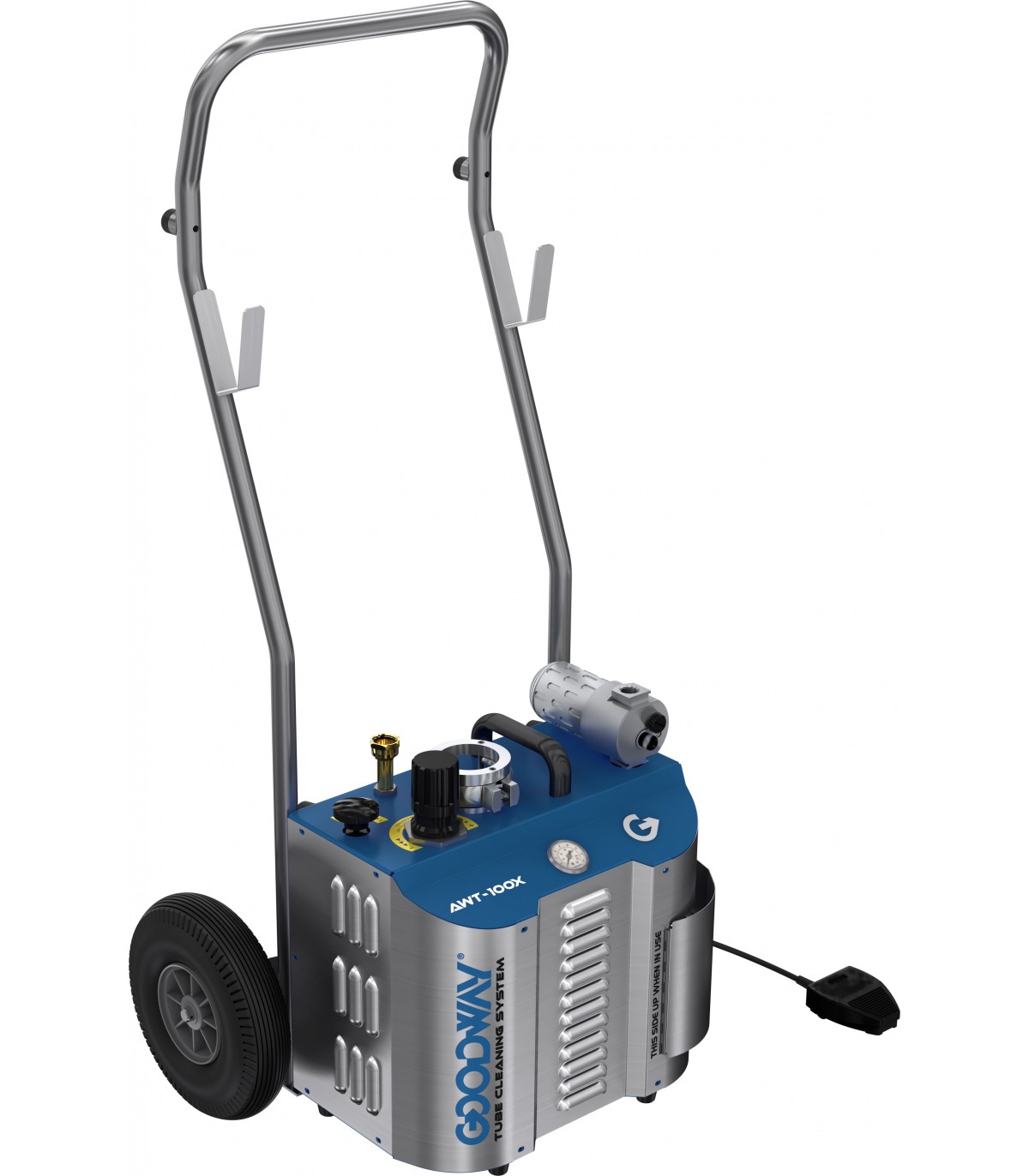

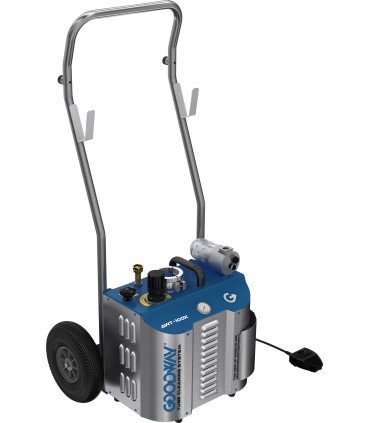

AWT-100X-ID
The AWT-100X-ID Air Powered Tube Cleaner is our most powerful and versatile unit. Use it for tubes, pipes and more, in wet or dry cleaning conditions. It incorporates the same operating principles as the AWT-100.
The AWT-100X-ID Air Powered Tube Cleaner is our most powerful and versatile unit. Use it for tubes, pipes and more, in wet or dry cleaning conditions. It incorporates the same operating principles as the AWT-100. Equipped with a 4 HP (3 kW) drive motor, this machine has the strength needed to clean virtually any tube/pipe 1/4" (6.4mm) I.D. and up. Flexible shafts and accessories are available for both, wet or dry applications.
The AWT-100X-ID uses a cleaning tool mounted to the tip of a flexible shaft. For wet applications, the unit feeds water through the casing to the cleaning tool, flushing out deposits as they are loosened. For dry applications, the GTC-DPA Dry Pickup Attachment and a simultaneous vacuum are used to remove loosened deposits.
AWT-100X Heavy-Duty Air Powered Cleaner includes:
- AWT-100X-ID Heavy-Duty Air Power Tube Cleaner
- Air lubricator
- Adjustable speed/torque control
- Mobile dolly with tool storage box
- Footswitch
Note: Shaft, brushes, and other accessories sold separately.
AWT-100 Features:
- Air powered - shock resistant
- Simple to operate - minimal training required
- Compact - easy to carry
- Speed/torque control - set shaft rotation at optimum speed for each application
- Interchangeable cleaning tools - versatile
- Simultaneous water flush or vacuum - removes deposits
- Foot switch activation - safe operation
- CE certified
Data sheet
- Application
- Intense, Industrial Use
- Tube Size Range
- Min 1/4" (6.4 mm)
- Power (HP)
- Max 4.0
- Flexible Shaft Speed (rpm)
- Variable 500 - 3000
- Shaft Feed Method
- Manual
- Water Requirements
- 7.5 L/min at min 2.1 BAR
- Dimensions (mm)
- 940 mm (H) x 1510 mm (W) x 430 mm (D)
- Weight (kg)
- 25
- Air Requirements
- Minimum: 4.1 BAR at 144,4 m3/min, Maximum: 6,8 BAR at 220,8 m3/min
